Flood protection in the desert state: Herrenknecht tunnel boring machine at work on modern drainage system in Qatar

Sep 08, 2014

Two Herrenknecht tunnel boring machines are being deployed for a major drainage system in the Qatari capital of Doha. Construction of the almost 10-kilometer tunnel is part of some major infrastructure projects for which Qatar has ordered more than 20 Herrenknecht machines.

With annual rainfall of less than 100 mm, Qatar is one of the driest landscapes on earth. But individual driving rain showers lead to extensive flooding in the densely populated capital of Doha. A comprehensive drainage system covering an area of 170 km2 aims to ensure improvement in the southern section of the city populated by half a million people.

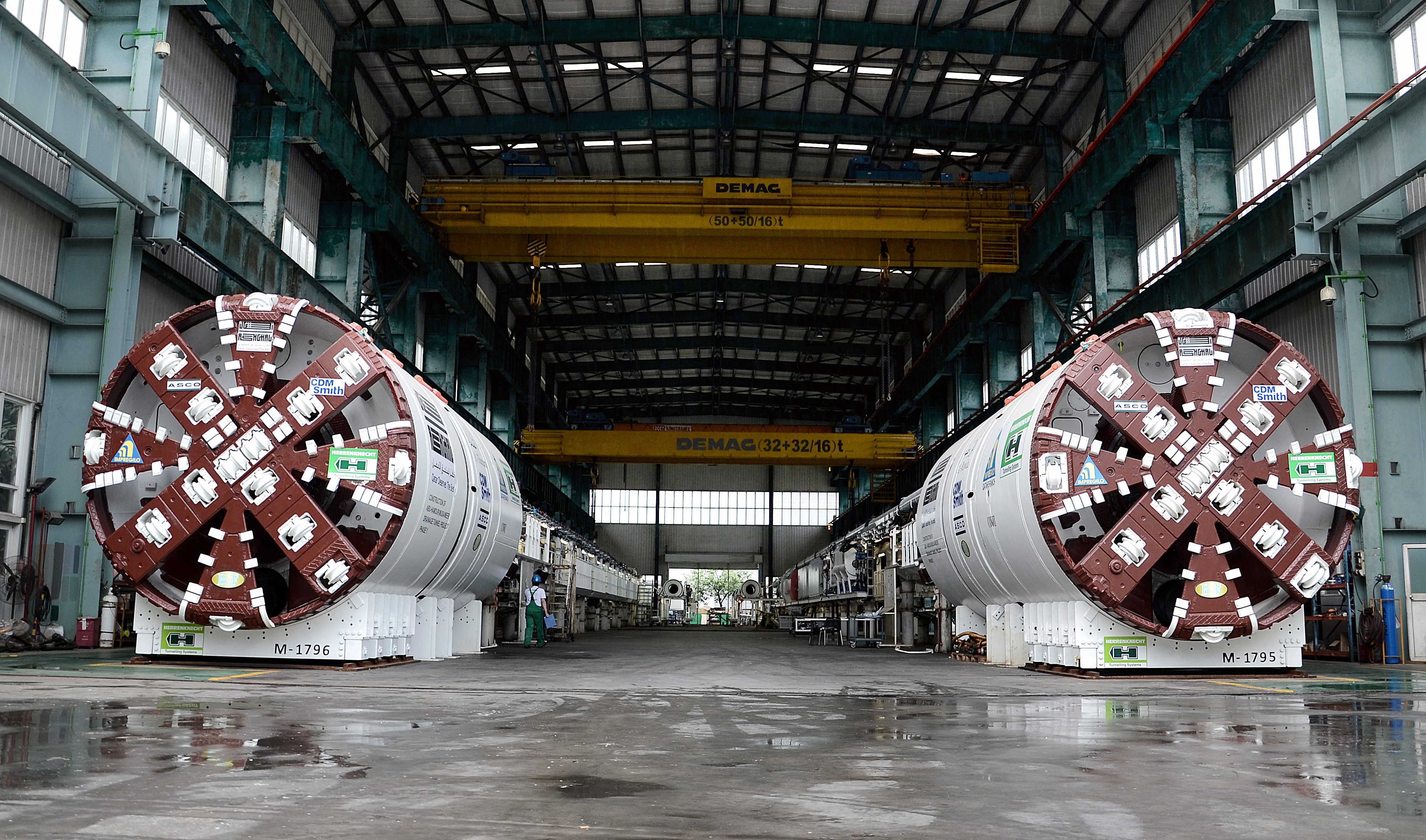

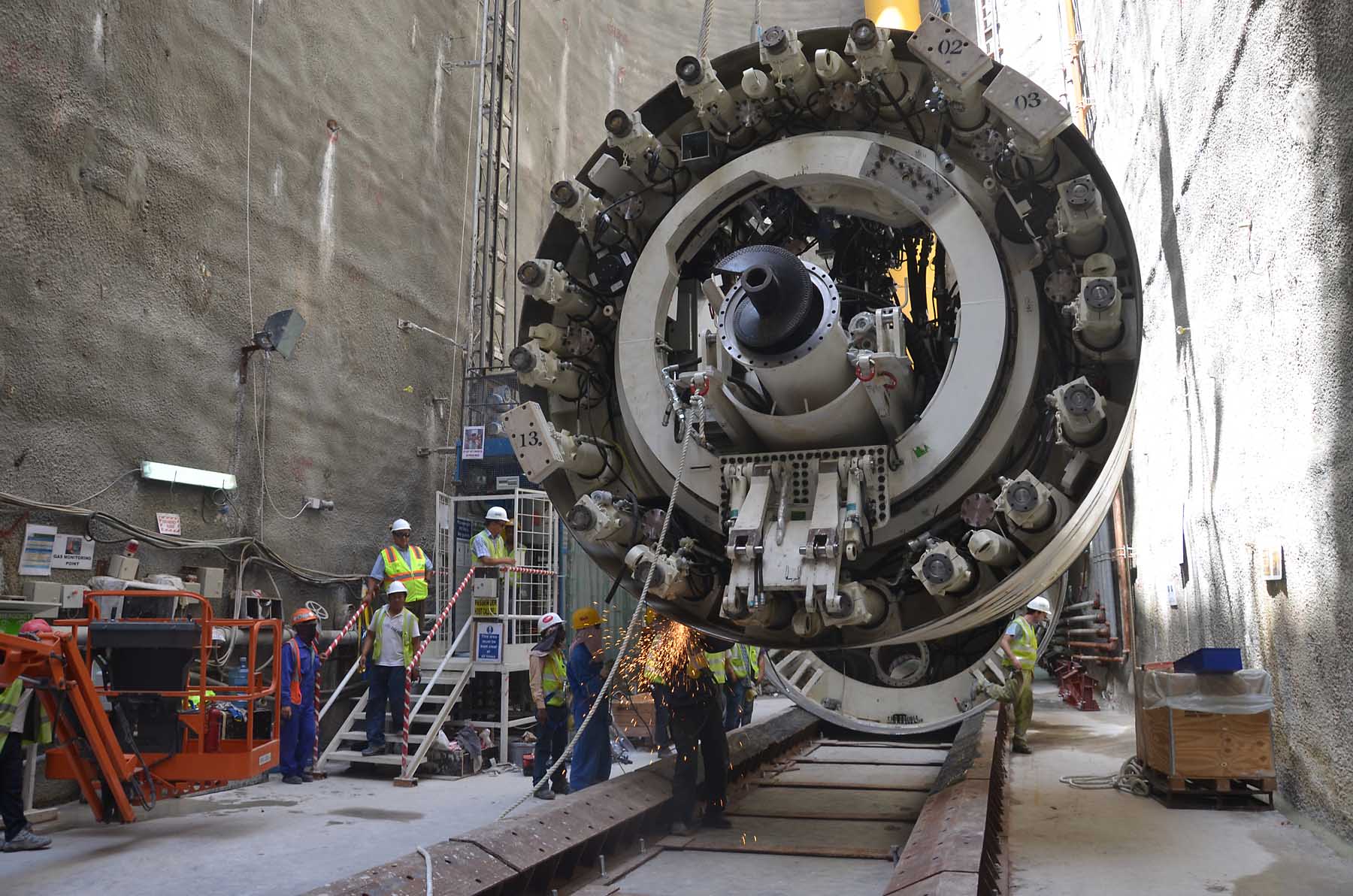

Two Herrenknecht tunnel boring machines (TBM) are driving a tunnel 20 to 30 meters underground for the so-called Abu Hamour Southern Outfall Project. The EPB Shields with a diameter of 4,470 mm are designed for Doha's soft limestone soil. Muck comprising excavated material serves as the support medium for the so-called Earth Pressure Balance Shield (EPB), providing the requisite pressure balance at the tunnel face. Protected by the shield skin, the tunnel is excavated using ring-shaped reinforced concrete segments. The individual segments are transported through the tunnel as it is completed and connected to form closed rings (segmental lining process) directly behind the TBM with an erector.

Via the main tunnel extending 9.5 kilometers, up to 16.5 cubic meters of water per second will later be conveyed to a central pump station near the New Doha International Airport.

Herrenknecht tunnelling technology was also used in designing some of the inlets during an initial construction phase. Using a slurry AVN machine from Herrenknecht, a total of four kilometers of tunnel with an outer diameter of 3.60 meters were excavated with the pipe jacking method in 2008. This is a remarkably large diameter for pipe jacking.

With its "Vision 2030", Qatar aims to offer its citizens the highest possible standard of living. Some projects are already being implemented and range from surface water discharge to traffic infrastructure. Herrenknecht is also involved in the new Doha Metro System with a total of 21 EPB Shields, many of which have already been delivered.

Project data:
Project data
Machine data
Location Doha,Qatar M-1795M abd M-1796M
Application Surface and groundwater drainage Machine type 2 x EPB 3700
Tunnel length 4500 m and 5000 m Shield diameter 4,470 mm
Geology Limestone Cutting wheel power 660kW
Client Qatar's public works authority Ashghal Contractor Impregilo S.p.A
